Electrical Wiring Repair & Installation Singapore Concealed, Surface & Overheating Wiring Fixed

Damaged, overheating or shorting wiring is the most serious kind of electrical fault you can have, and it lives behind the wall. TRUST ELECTRICIANS repairs and installs wiring for HDB flats, condos and landed houses, under LEW supervision, to Singapore Standard CP5, with EMA-approved cables and proper earthing.

Call +65 8409 2646 WhatsApp a Photo

Fixed quote before any wall is openedGet a free quote

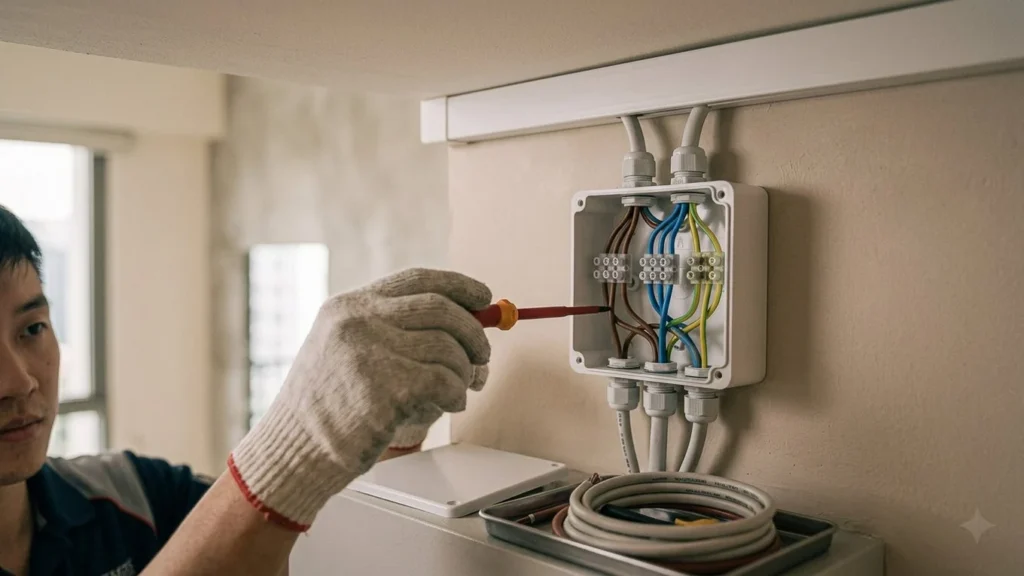

Open junction box with organised wiring and terminal connectors, with an electrician checking the connections.

Diagnosis firstMinimum wall opening, made good after

Surface repair: 1–3 hrsSingle-run trunking and conduit
Concealed repair: 2–6 hrsWalls, ceilings and floor screed
LEW sign-off + CoCBCA registered, EMA-compliant
HDB, condo & landedLicensed & insured local team

Registrations & certifications you can checkSingapore-registered and EMA-licensed

Warning signs

Faulty & Overheating Cable Replacement

A cable that runs hot, has discoloured insulation or smells burnt is a fire in waiting. The most common cause is a sustained overload on a circuit that was undersized for the load it now carries, typically a kitchen or air-conditioning circuit that has had more appliances added over the years.

The MCB trips under normal loadNot just under heavy load.
Warm or discoloured face plateOn a socket or a switch.
A faint burning smellNear an outlet, switch or along a wall.
Visible scorchingOn the back of a removed socket or on the cable insulation.

If you see any of the above, switch off the affected circuit at the DB and call us. The fix is a section of new cable, properly rated for the load, with new terminations.

Recent Wiring Repairs Across Singapore

Concealed faults traced and replaced, surface conduit renewed, old brittle cable removed. Every job by our own electricians, tested under load and made good before we leave.

Concealed wiring repairDamaged section opened and replaced

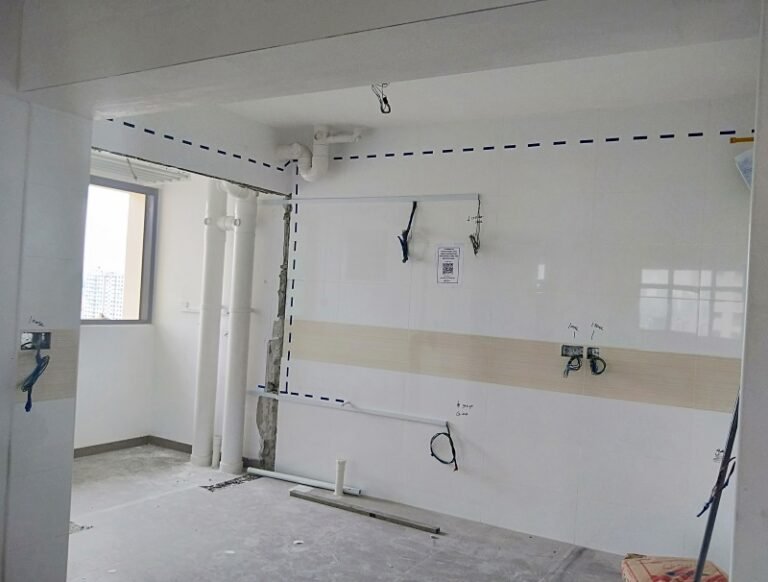

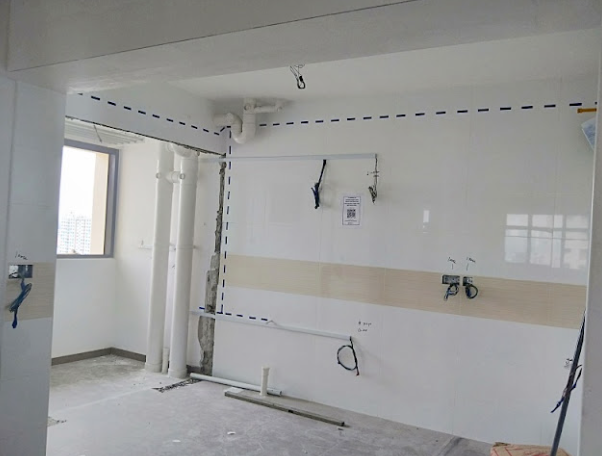

Concealed routes marked outKitchen wall, before any chasing
New wires pulled through conduitCeiling run replaced, Singapore home
Surface conduit wiringWall and ceiling cable routing
False ceiling openedOld wiring exposed for replacement

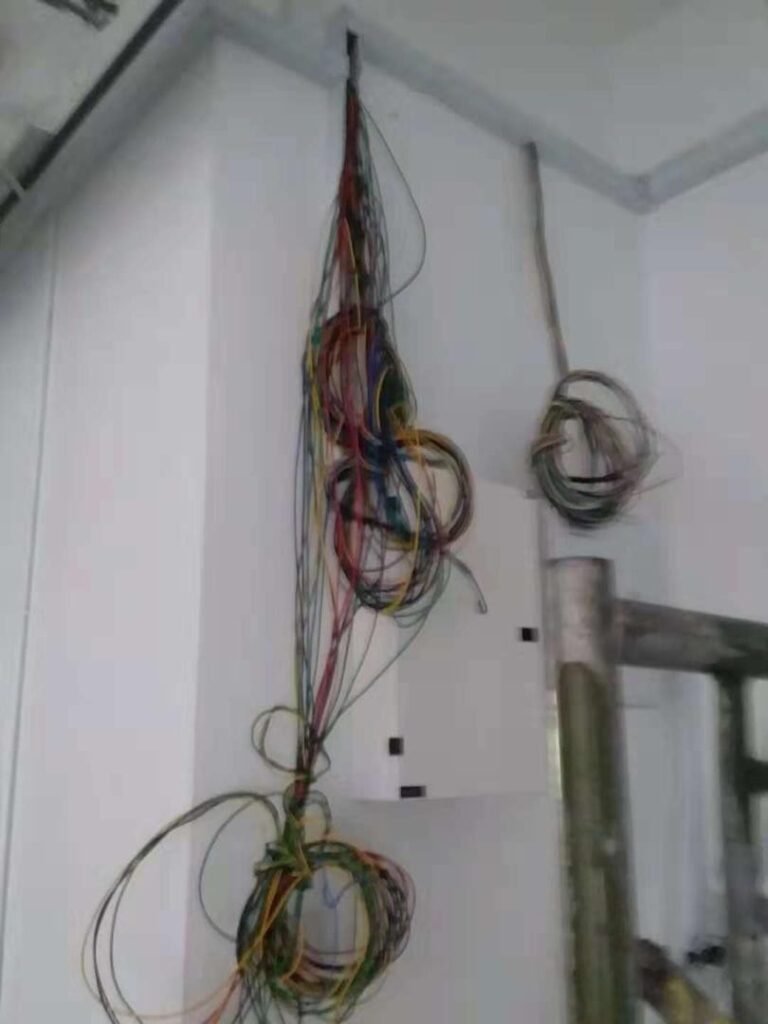

Old tangled wiring removedHDB flat, before re-cabling
Outdated exposed wiringOld house, before rewiring
New cable runs down the wallSwitch and power point feeds
Ceiling conduit channelsNew wiring to lighting points
Surface conduit, commercial unitNeat, protected cable runs
Junction box to switch pointRe-terminated and tested

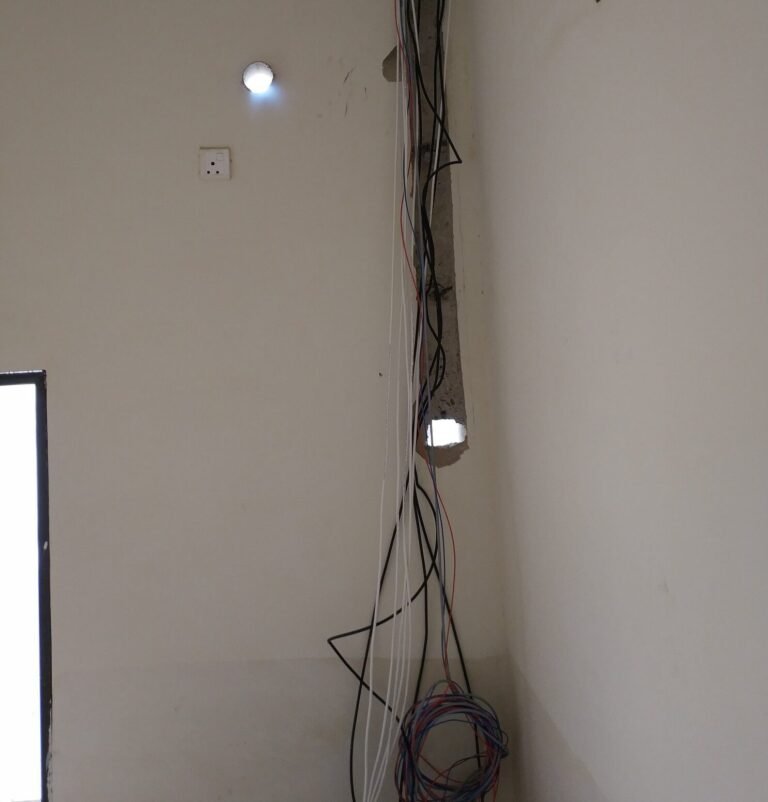

Cable bundle to a downlightCeiling void wiring renewed

Concealed wiring repairDamaged section opened and replaced
Concealed routes marked outKitchen wall, before any chasing
New wires pulled through conduitCeiling run replaced, Singapore home
Surface conduit wiringWall and ceiling cable routing
False ceiling openedOld wiring exposed for replacement
Old tangled wiring removedHDB flat, before re-cabling
Outdated exposed wiringOld house, before rewiring
New cable runs down the wallSwitch and power point feeds
Ceiling conduit channelsNew wiring to lighting points
Surface conduit, commercial unitNeat, protected cable runs
Junction box to switch pointRe-terminated and tested
Cable bundle to a downlightCeiling void wiring renewed

Wiring problem at home? Send a photo of the wall, socket or DB box and we will tell you what the job involves.

WhatsApp Your Photos

Two types of repair

Surface & Concealed Wiring Repair

Where your cable runs decides how we find the fault and how much wall we need to open. Either way, you get a fixed price after diagnosis.

Exposed conduit wiring routed along wall and ceiling in a Singapore commercial space

Repair 01

Exposed / Surface Wiring Repair

For HDB flats with surface-run wiring, or properties with conduit trunking along the wall, a wiring repair is straightforward: we open the trunking, identify the damaged cable, replace the affected section and close it back up.

Usually caused by

Mechanical impact: a door, a piece of furniture or a renovation drill hitting the conduit.
Overloading: too many high-draw appliances on one circuit, so the cable overheats and the insulation turns brittle.
Aged insulation: pre-1990s installations sometimes used rubber-insulated cable that hardens and cracks with age.
Water ingress: particularly in kitchen, bathroom and outdoor runs.

Typical repair time: 1–3 hours for a single-run surface wiring repair.

Cracked trunking or a hot cable run? Switch off that circuit and call us.Call Now

Repair 02

Concealed Wiring Repair (HDB & Condo)

Concealed wiring, with cables run inside the wall, ceiling or floor, is the more common and more challenging case in Singapore. The cable is hidden, the fault is hidden, and the repair usually involves some making-good of the wall afterwards.

Common scenarios we resolve

HDB concealed wiring damaged during renovation drilling: the most common cause of an HDB power trip that will not reset. We locate the damaged section with a cable tracer and insulation tester, open the minimum amount of wall, replace the run and make good.
Old PY cable (1990s HDB): brittle insulation and exposed conductors make every load a short-circuit risk. For a single fault we replace the affected run to current standard; the safe long-term answer is a rewire (see Electrical Rewiring Singapore and Residential Rewiring Singapore).
Concealed short under tile or floor screed: rarer, but it happens in older condos and landed houses. A thermal imaging camera and low-voltage cable tracer pinpoint the fault before we open anything.
Ceiling void wiring: common in condos with false ceilings. We work through the existing access panel or remove a small ceiling section, then make good.

Typical repair time: 2–6 hours depending on location, access and cable length. Fixed price after diagnosis, before any wall is opened.

Drilled into a wall and lost power? Leave the breaker off and call us.Call Now

Over 2,500 Electrical Jobs Completed Across Singapore

From a drill-damaged concealed cable to a warm, scorched socket, here is what Singapore homeowners and businesses say about us on Google.

5.0Based on 12 Google reviews




       Posted on Google

   I am Geelarious



 Trustindex verifies that the original source of the review is Google. very reliable, arrived in my house within 15 minutes. thank you so much for fixing my faulty switch at such a late notice! electrician was also very professional


      Posted on Google

   Terry Toh



 Trustindex verifies that the original source of the review is Google. I was very pleased with quick response of Trusted Electricians to my problem. The person assigned, Mr. Sakwan was knowledgeable about the replacements needed and discussed what was necessary and what was optional fairly. Meticulous in his work, making sure that the end result was neat and tidy.


      Posted on Google

   Edison Tie



 Trustindex verifies that the original source of the review is Google. Skillful and neat work done. Thanks!


      Posted on Google

   John H



 Trustindex verifies that the original source of the review is Google. Very prompt reply and service from Shakhawat. Came within 30 minutes. Everything settled with the faulty socket. Professionally done. Thank you


      Posted on Google

   Johnson Wong



 Trustindex verifies that the original source of the review is Google. Fast arrival within 30min and checked my electrical box and solve the problem in 2 hour time. change few parts. price reasonable.

Read all our reviews on Google Worked with us? Leave a review

Singapore standard

Cable Sizing & Colour Code

Singapore follows the BS 7671 / IEC 60446 colour code for fixed wiring. Matching the cable size to the load is what keeps a circuit cool.

Colour code

Live (phase)Brown (Red in older installations)
NeutralBlue (or Black in older installations)
EarthGreen-Yellow stripe (or bare copper in some older installations)

Common cable sizes we use

Cable sizeAppropriate forMax load

1.5 mm² (twin & earth)Lighting circuits, 10A~2,300W

2.5 mm² (twin & earth)13A socket circuits~3,600W

4.0 mm² (twin & earth)20A socket circuits, small aircon spurs~4,800W

6.0 mm² (twin & earth)Larger aircon spurs, water-heater circuits~7,200W

10 mm² and aboveMain incoming, high-load commercial, sub-distributionBy design

If your existing cable is undersized for the load you intend to put on it (for example 2.5 mm² feeding a water heater), we will tell you upfront and quote a re-cable as part of the same job.

Ask About Your Cable Size

Warm Socket, Burning Smell or a Trip That Will Not Reset?

Hidden wiring faults are a leading cause of household electrical fires in Singapore. Switch off the affected circuit at the DB and call us. We find the fault first, then quote before any wall is opened.

Call +65 8409 2646 WhatsApp a Photo

Planning new wiring? Get a free written quote

While the wall is open

Data & Network Cabling

In modern HDB and condo renovations, wiring repair often goes hand-in-hand with data cabling. If we are already opening the wall, adding a data point in the same visit is the most cost-effective time to do it.

Cat 6 / Cat 6A data points

For stable home-office internet, mesh Wi-Fi backhaul and IP camera runs.

Coaxial / HDMI conduit

For TV points, especially in landed houses and larger condos.

Fibre-ready conduit

From the DB to the optical network terminal (ONT) location, ready for future fibre broadband upgrades.

New wiring for renovations

New circuits, additions and fit-outs for HDB, condo and landed homes, coordinated with your ID.

Add Data Points to Your Job

Electrical Installation Services

How we work

Our Wiring Repair Process

Diagnosis first, a fixed quote second, and only then do we open the wall.

Electrician pulling new wires through PVC conduit on the ceiling during electrical wiring installation in Singapore

1–3 hrsSurface repairSingle-run trunking

2–6 hrsConcealed repairWalls, ceilings, floors

Photo or symptom description. WhatsApp a photo of the affected switch, socket or DB box, or describe what is happening (trip, smell, scorch mark).
On-site diagnosis. A cable tracer, insulation resistance tester and thermal camera find the fault without unnecessary wall opening.
Fixed quote. Written and transparent, before any wall is opened or cable is run. No "we'll see when we open it up" surprises.
Repair or replacement. We open the minimum amount of wall, replace the affected cable run, terminate properly at both ends and test under load.
Making good. We patch the wall and plaster it smooth, ready for painting. Painting itself is outside our scope, but we can recommend a painter.
LEW sign-off and CoC. Any fixed-wiring modification in Singapore needs a Licensed Electrical Worker endorsement and a Certificate of Compliance. We issue it in the same visit.

Start With a Photo Or call +65 8409 2646

Wall and ceiling wiring points left ready for fixtures during full rewiring of an empty HDB flat in Singapore

Diagnosis-firstWe locate the fault before we open any wall.

Why Homeowners Trust Us for Wiring Repair

Licensed & LEW-endorsedEvery wiring job is signed off by a Licensed Electrical Worker registered with the EMA.
Diagnosis-first, not guess-and-chopProper test instruments locate the fault before any wall is opened.
EMA-approved cables onlyNo unbranded or "compatible" substitutes. Every run is properly rated for the load.
Making good includedWe patch the wall smooth so it is ready for painting.
CoC issuedFor any fixed-wiring modification: important for insurance and any future HDB resale.
Fixed, written quotesThe price we quote after diagnosis is the price you pay.

Get a Fixed Written Quote Or call +65 8409 2646 24/7

Areas We Cover for Electrical Wiring Repair

Islandwide Singapore, no travel surcharge. For landed properties and private estates, we have the same islandwide footprint and response times.

Book a Wiring Repair

We regularly attend electrical repair calls in

Tampines
Bedok
Sengkang
Punggol
Yishun
Woodlands
Jurong West
Jurong East
Bukit Batok
Toa Payoh
Ang Mo Kio
Hougang
Serangoon
Bishan
Clementi
Queenstown
Choa Chu Kang
Bukit Panjang
Pasir Ris
Kallang
Geylang
Marine Parade
Bukit Merah
Bukit Timah
Holland Village
East Coast

Wiring Repair FAQs

Straight answers about concealed wiring, old PY cable, CoC and renovation wiring.

Ask on WhatsApp Call Us

How do I know if my wiring needs repair?

The most common signs are: a power trip that will not reset, a socket or switch that is warm to the touch, a burning smell with no visible source, or a power outage that affects one room but not the corridor. If any of these are happening, switch off the affected circuit at the DB and call us.

Do I need to open the wall to fix concealed wiring?

Usually, yes, but only the minimum amount needed. We use a cable tracer and insulation tester to pinpoint the fault, so the open-up is small and targeted. We then patch and make good so the wall is ready for painting.

Is it worth repairing old PY cable, or should I just rewire?

It depends on how much of the installation is affected. A single-fault repair of a damaged PY cable is reasonable as an emergency fix. But if the PY cable is brittle throughout the flat, every run is a future fault waiting to happen, and a full rewire is the safer long-term answer. We will tell you honestly which option makes sense for your installation.

Will I need a Certificate of Compliance (CoC)?

Yes. Any fixed-wiring modification in Singapore (and a cable replacement is one) legally requires a Licensed Electrical Worker endorsement and a Certificate of Compliance. We issue it as part of the same visit, with a written copy for your records. This matters for HDB resale handovers, insurance claims and future renovations.

Can you install new wiring for a renovation?

Yes. For HDB, condo and landed renovations we run new wiring, install new DB components and coordinate with your ID. See our Residential Rewiring Singapore page for the full renovation-wiring scope.

Need Electrical Wiring Repaired Right Now?

Power trip that will not reset, a burning smell from a wall, a warm switch or any sign of damaged, overheating or shorting wiring? Do not wait for it to get worse. TRUST ELECTRICIANS Singapore provides fast, safe and professional wiring repair and installation.

WhatsApp us a photoFastest way to get a price range Call +65 8409 264624/7 line for urgent and emergency jobs sales@trustelectricians.comFor quotations, tenders and documents
